TEMCo 10 Ton Hydraulic Cylinder 2" Stroke Single Acting 10,000 PSI – Machinery, Foundation Support & Construction

TEMCo Industrial's hydraulic cylinders come with an ISO 14540 coupler, which means you're compatible with a large majority of other products out on the market. Don't deal with the headache of mismatched fittings and confusing coupler specifications - have the confidence that you're ready to thread into a TEMCo hydraulic cylinder so you can get back to your project, whether you're a pro at work or a regular Joe. Not using a standard coupler fitting? That's ok, we've included the matching opposite fitting to adapt your equipment.BONUS: Includes ISO 14540 Male x Female 3/8" NPT Connector (Shown in photos)Type: Hollow Hydraulic CylinderAction: Single acting (Pressure extend, spring return)Ram Material: Hard Black Oxide Plated High Carbon SteelCapacity: 10 US TonsCompressed Overall Height: 4.8"Extended Overall Height: 6.77"Stroke: 1.97"Outside Cylinder Diameter: 2.68"Inner Cylinder Diameter: 1.77"Oil Volume: 5.19 cubic inMax Pressure: 10,000 psiMin Operating Temp: -15°CConnector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust capWarranty: 5 YearsApplications Include: Heavy machinery rigging and movingAuto repairOil riggingMachine maintenanceBearing and bushing removal and installationLifting, pushing, spreading, bending, pressing or straighteningCoupler SpecificationsStandard: ISO 14540Thread (between male poppet end and coupling ring): M30 x 1.5 mmThread: 3/8" NPTOcclusion Type: PoppetRated Pressure: 10,000 psiRated Flow: 6 GPMSealing Material: Nitrile Rubber (Buna-N, NBR)

• 10 US Ton Capacity, 2" Stroke. Max Pressure 10,000 PSI. Single acting - Pressure Extend, Spring Return.
• Extended Overall Height: 6.77", Stroke: 1.97", Outside Cylinder Diameter: 2.68", Inner Cylinder Diameter: 1.77", Oil Volume: 5.19 cubic in
• Black oxide plated high carbon steel ram. Proprietary heat-treated steel shell. Chrome plated piston resists wear and corrosion. Dust wiper on piston rod reduces debris.

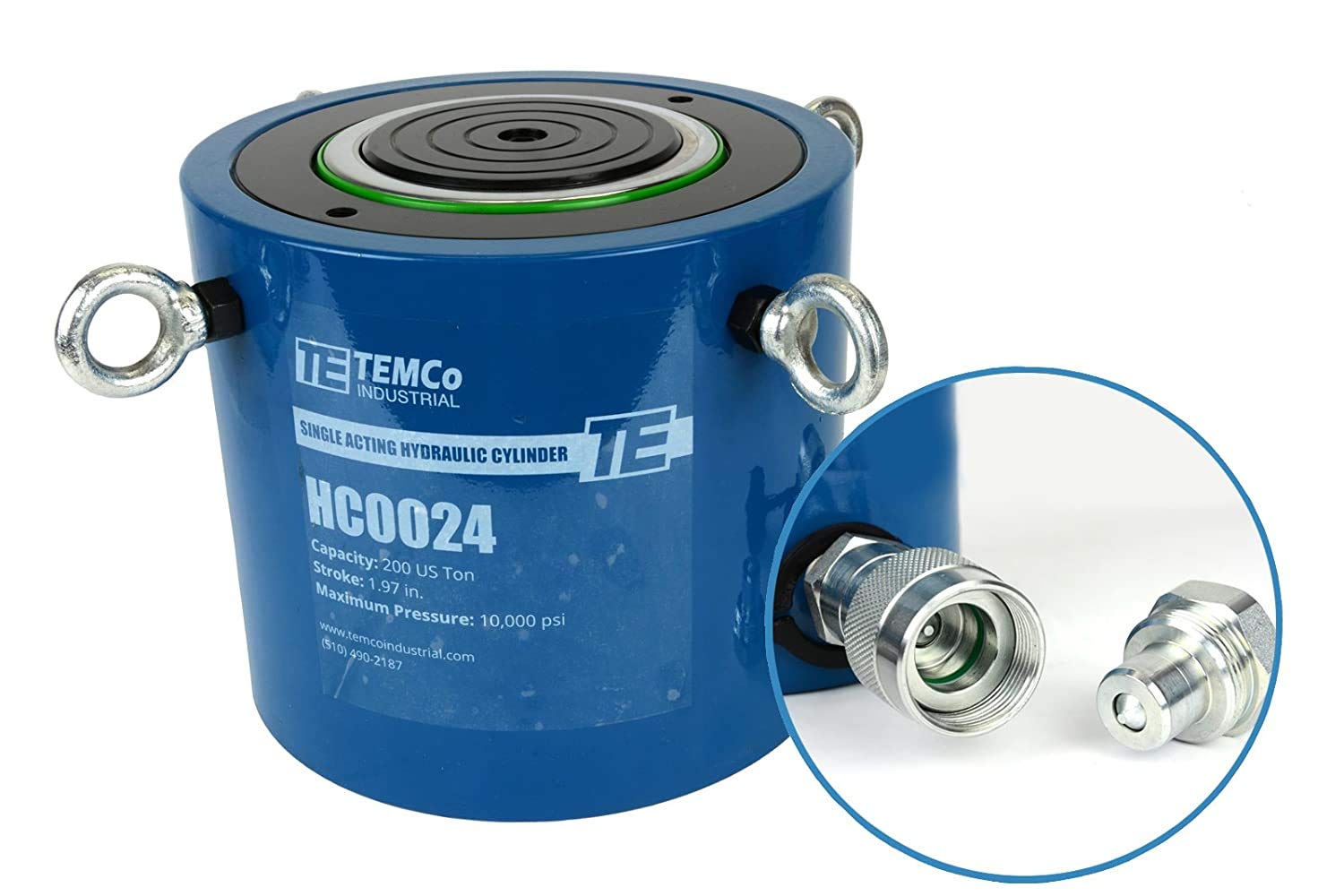

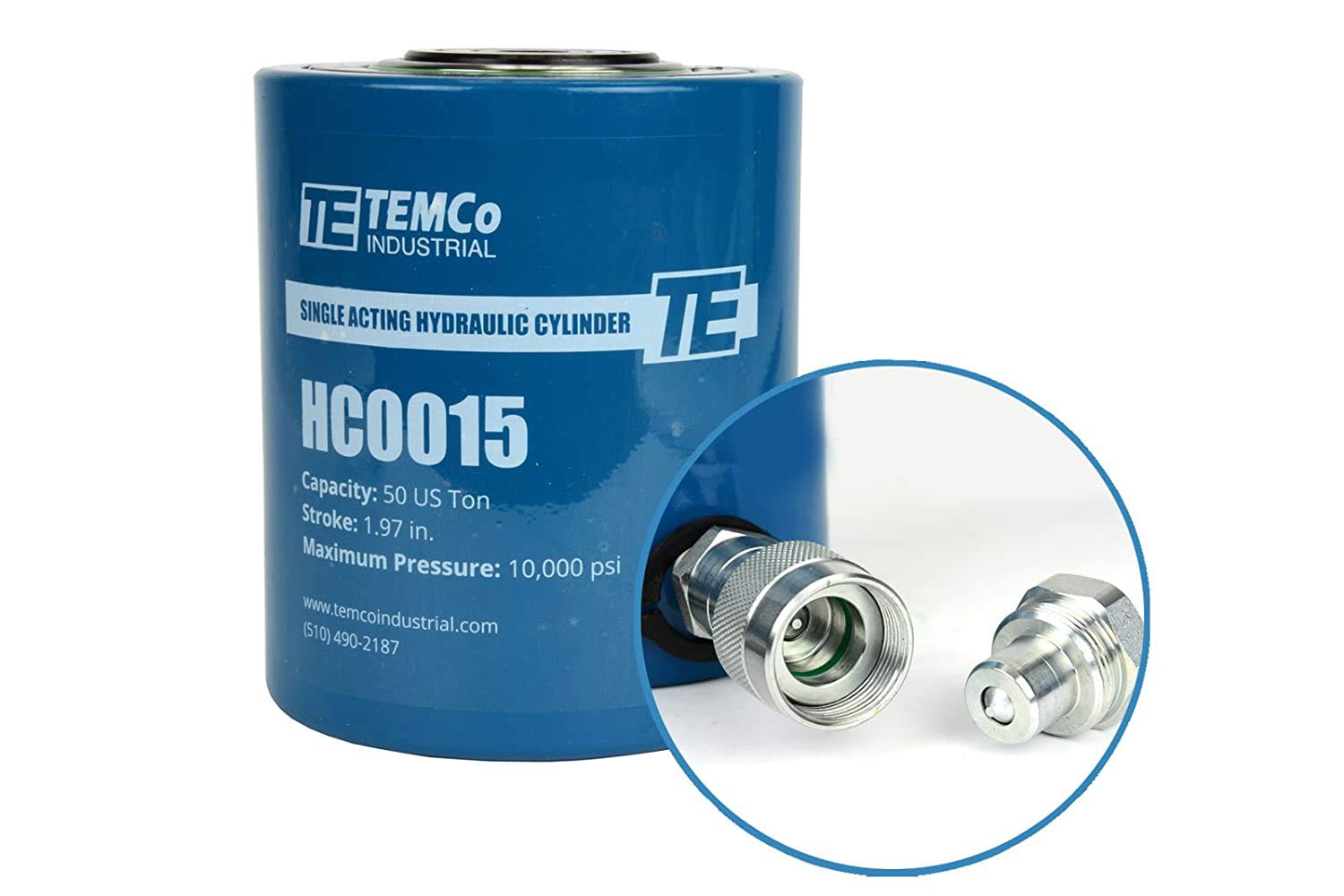

• Includes ISO 14540 Quick Coupler – Ships with a 3/8" NPT Male & Female hydraulic connector (10,000 psi rated, 6 GPM flow) featuring poppet-style occlusion, nitrile rubber seals, and a protective dust cap; compatible with most standard hydraulic equipment so you can get to work without mismatched fittings.
• Backed by a 5-Year manufacturer warranty for confidence and peace of mind on every job.
